Brass-Sleeved Magnet Assemblies

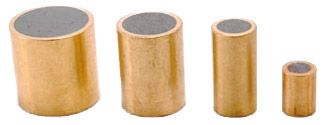

Alnico Brass-Sleeved Magnet Assemblies

Brass-Sleeved Alnico Magnet AssembliesBrass-Sleeved Alnico Magnet Assemblies
Part NumberDiameter ±0.001Length ±0.005Magnet DiameterHolding Force
DBS-12500.125″0.500″0.093″3.2 oz
DBS-121000.125″1.000″0.093″5.0 oz
DBS-18500.1875″0.500″0.157″4.5 oz
DBS-181000.1875″1.000″0.157″13 oz
DBS-25370.250″0.375″0.187″3.8 oz
DBS-25500.250″0.500″0.187″5.5 oz
DBS-251000.250″1.000″0.187″17 oz
DBS-31500.3125″0.500″0.250″8.9 oz
DBS-311000.3125″1.000″0.250″15 oz
DBS-37370.375″0.375″0.312″4.6 oz
DBS-37500.375″0.500″0.312″8.5 oz
DBS-371000.375″1.000″0.312″18 oz
DBS-43500.4375″0.500″0.375″9.1 oz
DBS-50500.500″0.500″0.437″10.8 oz
DBS-501000.500″1.000″0.437″26.7 oz
DBS-62500.625″0.500″0.500″7.8 oz

Neodymium Brass-Sleeved Magnet Assemblies

Brass-Sleeved Neodymium Magnet AssembliesBrass-Sleeved Neodymium Magnet Assemblies
Dura Magnetics P/NDiameter ±0.001Length ±0.005Magnet DiameterHolding Force
DBS-1225-ND0.125″0.250″0.093″0.50 lbs
DBS-1825-ND0.1875″0.250″0.125″0.95 lbs
DBS-2525-ND0.250″0.250″0.187″1.90 lbs
DBS-2550-ND0.250″0.500″0.187″2.20 lbs
DBS-3125-ND0.3125″0.250″0.250″3.20 lbs
DBS-3737-ND0.375″0.375″0.312″5.25 lbs
DBS-3750-ND0.375″0.500″0.312″5.70 lbs
DBS-5025-ND0.500″0.250″0.437″7.70 lbs
DBS-5050-ND0.500″0.500″0.437″10.35 lbs
DBS-7537-ND0.750″0.375″0.625″16.20 lbs

Did You Know?

Without proper design considerations, your magnet will fail. High temperatures, other magnetic fields and aggressive environments can cause magnets to fail.
