Channel / Sandwich Magnet Assemblies

Flange Magnets

Two Pole Flange, Bright Zinc Plated

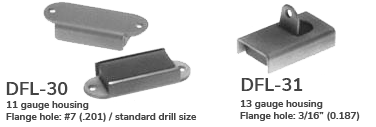

Flange Magnets (DFL Series)Flange Magnet Assemblies
ModelLengthWidthHeightWeightPower
DFL-303″1-1/4"1/2″.28 lbs30 lbs
DFL-312-1/8″1-3/16″1/2″.22 lbs20 lbs
*Holding force determined under ideal conditions, safety dictates a workload 1/2-1/3 of maximum.

Bipolar / Magnetic Block Assemblies

High grade ceramic magnets epoxied between 1/8″ and 1/4″ plated, precision ground poles – insuring maximum energy output.

Applications: door closures, coolant and air nozzle bases, locating and leveling devices, welding and hold-down fixtures, suspending room dividers, cargo safety nets and tarps, etc.

Bipolar / Magnetic Block Assemblies

Bipolar / Magnetic Block Assemblies
ModelLengthWidthHeightWeightPower
DBL-72-3/4″5/8″1-3/16″.31 lbs50 lbs
DBL-82-3/4″5/8″1″.31 lbs50 lbs
DBL-112-3/4″1-1/4″1-3/16″.53 lbs85 lbs
DBL-122-3/4″1-3/16″1″.56 lbs90 lbs
DBL-152-3/4″1-1/4″1-3/16″.72 lbs150 lbs
DBL-162-3/4″1-3/16″1″.81 lbs160 lbs
*Holding force determined under ideal conditions, safety dictates a workload 1/2-1/3 of maximum.

Did You Know?

Without proper design considerations, your magnet will fail. High temperatures, other magnetic fields and aggressive environments can cause magnets to fail.
