Closed Loop Hook Neodymium Cup Assemblies

Closed Loop Hook Neodymium Magnetic Cup AssemblyClosed loop cup magnet assemblies are magnetic cup and base assemblies consisting of a steel cup with an attached closed-loop hook and a neodymium magnet base. The general-purpose nature of the closed-loop hook allows for a wide variety of attachment and holding possibilities.

Dura Magnetics supplies closed loop hook neodymium cup magnet assemblies available in a variety of in-stock dimensions. If we do not have the size you are looking for listed below, we can also supply custom closed loop hook assemblies to meet your exact specifications. Simply contact us at 1-800-497-8182 or send us an email to discuss your project needs.

Closed Loop Hook Neodymium Cup Assemblies
Dura Magnetics P/ND

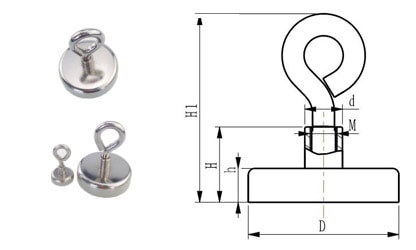

D1MhHH1Holding Force
DNC-F100.39"
(10 mm)
0.24"
(6 mm)
0.12"
(3 mm)
0.20"
(5 mm)
0.49"
(12.5 mm)
1.42"
(36 mm)
4 lbs
DNC-F120.47"
(12 mm)
0.24"
(6 mm)
0.12"
(3 mm)
0.20"
(5 mm)
0.48"
(12.2 mm)
1.42"
(36 mm)
7 lbs
DNC-F160.63"
(16 mm)
0.26"
(6.5 mm)
0.16"
(4 mm)
0.20"
(5.2 mm)
0.53"
(13.5 mm)
1.42"
(36 mm)
12 lbs
DNC-F200.79"
(20 mm)
0.26"
(6.5 mm)
0.16"
(4 mm)
0.28"
(7.2 mm)
0.59"
(15 mm)
1.50"
(38 mm)
19 lbs
DNC-F250.98"
(25 mm)
0.30"
(7.5 mm)
0.20"
(5 mm)
0.30"
(7.7 mm)
0.67"
(17 mm)
1.89"
(48 mm)
48 lbs
DNC-F321.26"
(32 mm)
.39"
(10 mm)
0.24"
(6 mm)
0.31"
(7.8 mm)
0.71"
(18 mm)
1.92"
(48.8 mm)
74 lbs
DNC-F361.42"
(36 mm)
.39"
(10 mm)
0.24"
(6 mm)
0.30"
(7.6 mm)
0.73"
(18.5 mm)
1.90"
(48.2 mm)
90 lbs
DNC-F421.65"
(42 mm)
.39"
(10 mm)
0.24"
(6 mm)
0.35"
(8.8 mm)
0.74"
(18.8 mm)
1.96"
(49.9 mm)
149 lbs
DNC-F481.89"
(48 mm)
0.47"
(12 mm)
0.31"
(8 mm)
0.43"
(10.8 mm)
0.94"
(24 mm)
2.60"
(66 mm)
175 lbs
DNC-F602.36"
(60 mm)
0.47"
(12 mm)
0.31"
(8 mm)
0.59"
(15 mm)
1.10"
(28 mm)
2.76"
(70.2 mm)
245 lbs
DNC-F752.95"
(75 mm)
0.67"
(17 mm)
0.39"
(10 mm)
0.70"
(17.8 mm)
1.38"
(35 mm)
3.46"
(88 mm)
355 lbs
