Tapped post cup magnet assemblies are magnetic cup and base assemblies consisting of a steel cup with an attached tapped post containing internal screw threads and a neodymium magnet base. The tapped post or stud allows for a variety of attachment possibilities, including various screw-in connections.
Dura Magnetics supplies tapped post neodymium cup magnet assemblies available in a variety of in-stock dimensions. If we do not have the size you are looking for listed below, we can also supply custom tapped post assemblies to meet your exact specifications. Simply contact us at 1-800-492-7939 or send us an email to discuss your project needs.
| Tapped Post Neodymium Cup Assemblies |  |
||||||
|---|---|---|---|---|---|---|---|

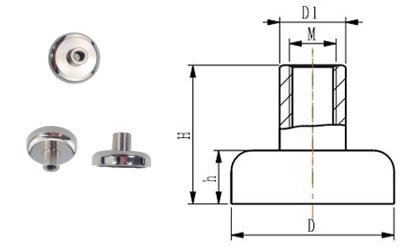

| Dura Magnetics P/N | D | D1 | M | H | h | Tap / Thread Size | Holding Force |
| DNC-D10 | 0.39" (10 mm) | 0.24" (6 mm) | 0.12" (3 mm) | 0.49" (12.5 mm) | 0.20" (5 mm) | 4-40 | 4 lbs |
| DNC-D12 | 0.47" (12 mm) | 0.24" (6 mm) | 0.12" (3 mm) | 0.48" (12.2 mm) | 0.20" (5 mm) | 4-40 | 7 lbs |
| DNC-D16 | 0.63" (16 mm) | 0.26" (6.5 mm) | 0.16" (4 mm) | 0.53" (13.5 mm) | 0.20" (5.2 mm) | 4-40 | 12 lbs |
| DNC-D20 | 0.79" (20 mm) | 0.26" (6.5 mm) | 0.16" (4 mm) | 0.59" (15 mm) | 0.28" (7.2 mm) | 6-32 | 19 lbs |
| DNC-D25 | 0.98" (25 mm) | 0.30" (7.5 mm) | 0.20" (5 mm) | 0.67" (17 mm) | 0.30" (7.7 mm) | 8-32 | 48 lbs |
| DNC-D32 | 1.26" (32 mm) | .39" (10 mm) | 0.24" (6 mm) | 0.71" (18 mm) | 0.31" (7.8 mm) | 10-32 | 74 lbs |
| DNC-D36 | 1.42" (36 mm) | .39" (10 mm) | 0.24" (6 mm) | 0.73" (18.5 mm) | 0.30" (7.6 mm) | 10-32 | 90 lbs |
| DNC-D42 | 1.65" (42 mm) | .39" (10 mm) | 0.24" (6 mm) | 0.74" (18.8 mm) | 0.35" (8.8 mm) | 1/4-20 | 149 lbs |
| DNC-D48 | 1.89" (48 mm) | 0.47" (12 mm) | 0.31" (8 mm) | 0.94" (24 mm) | 0.43" (10.8 mm) | 1/4-20 | 175 lbs |
| DNC-D60 | 2.36" (60 mm) | 0.47" (12 mm) | 0.31" (8 mm) | 1.10" (28 mm) | 0.59" (15 mm) | 3/8-16 | 245 lbs |
| DNC-D75 | 2.95" (75 mm) | 0.67" (17 mm) | 0.39" (10 mm) | 1.38" (35 mm) | 0.70" (17.8 mm) | 3/8-16 | 355 lbs |
